BGA
rectangular
Aluminium 6063
| Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
|---|---|---|---|
| H 25-06 | 25x25 | 6.3 | 5.2 |
| H 25-10 | 25x25 | 9.5 | 6.8 |
| H 25-13 | 25x25 | 12.7 | 8.4 |

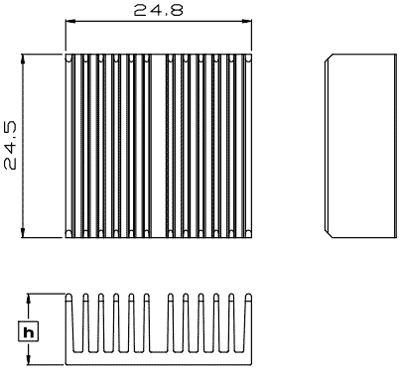

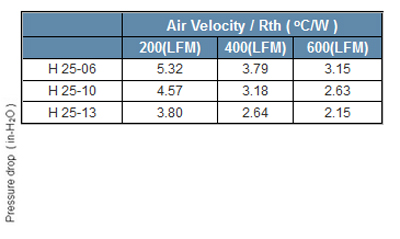

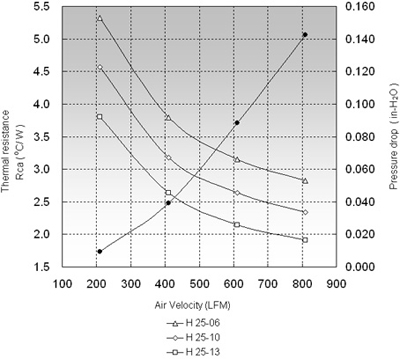

CEBA012525 SerieThermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
