BGA
elliptical
Aluminum 6063

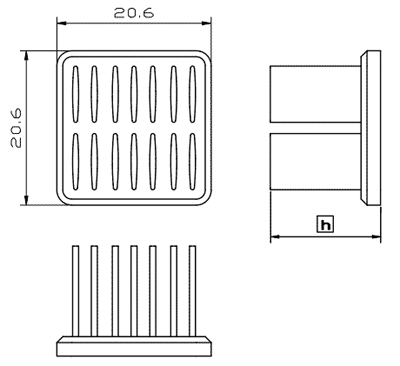

Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
---|---|---|---|
MW 21-12 | 21X21 | 11.6 | 4.7 |
MW 21-15 | 21X21 | 14.6 | 5.2 |
MW 21-18 | 21x21 | 17.6 | 5.8 |
MW 21-21 | 21x21 | 20.6 | 6.4 |
MW 21-23 | 21x21 | 22.6 | 6.8 |
MW 21-28 | 21x21 | 27.6 | 7.8 |
MW 21-33 | 21x21 | 32.6 | 8.7 |
CMBA012121 Serie

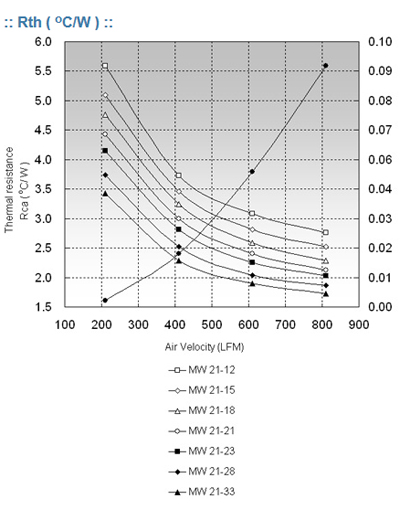

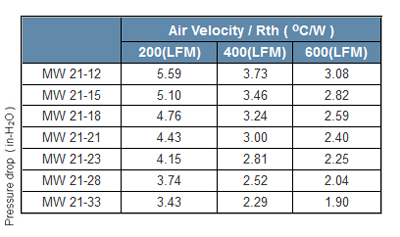

Thermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
