BGA
rectangular
Aluminum 6063

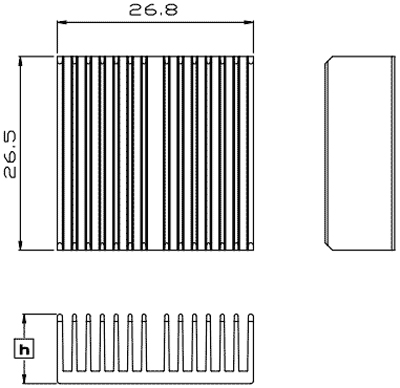

| Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
|---|---|---|---|
| H 27-06 | 27x27 | 6.3 | 5.8 |
| H 27-10 | 27x27 | 9.5 | 7.5 |
| H 27-13 | 27x27 | 12.7 | 9.2 |

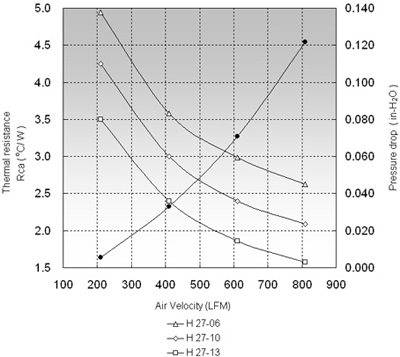

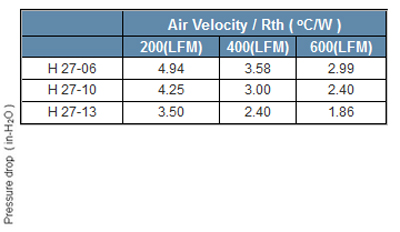

CEBA012727 SerieThermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
