BGA
elliptical
Aluminum 6063

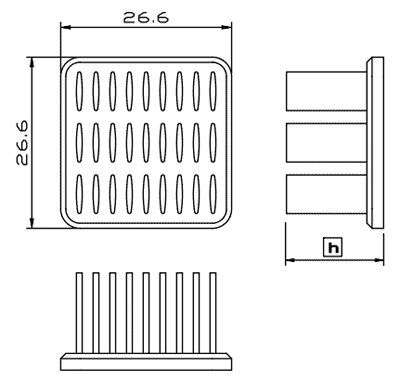

Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
---|---|---|---|
MW 27-12 | 27x27 | 11.6 | 7.7 |
MW 27-15 | 27x27 | 14.6 | 8.7 |
MW 27-18 | 27x27 | 17.6 | 9.7 |
MW 27-21 | 27x27 | 20.6 | 10.6 |
MW 27-23 | 27x27 | 22.6 | 11.3 |
MW 27-28 | 27x27 | 27.6 | 12.9 |
MW 27-33 | 27x27 | 32.6 | 14.5 |
CMBA012727 Serie

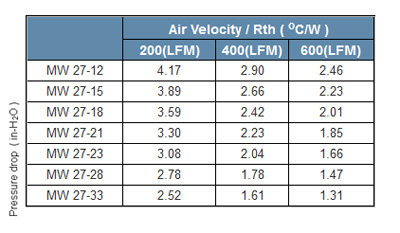

Thermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
