BGA
elliptical
Aluminum 6063

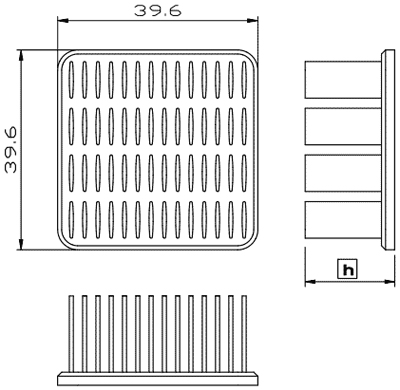

Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
---|---|---|---|
MW 40-12 | 40x40 | 11.6 | 17.5 |
MW 40-15 | 40x40 | 14.6 | 18.8 |
MW 40-18 | 40x40 | 17.6 | 21.0 |
MW 40-21 | 40x40 | 20.6 | 23.2 |
MW 40-23 | 40x40 | 22.6 | 24.7 |
MW 40-28 | 40x40 | 27.6 | 28.5 |
MW 40-33 | 40x40 | 32.6 | 32.2 |
CMBA014040 Serie

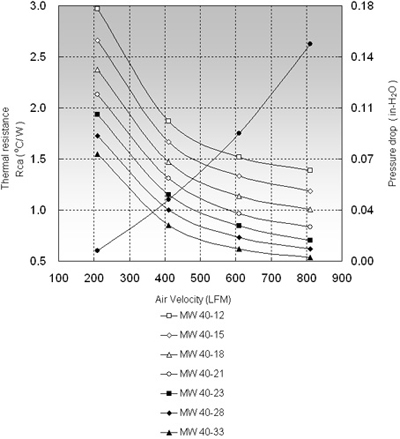

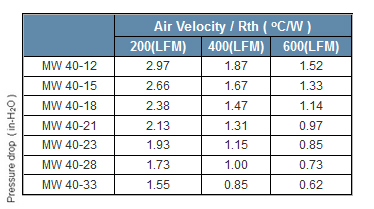

Thermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
