BGA
elliptical
Aluminum 6063

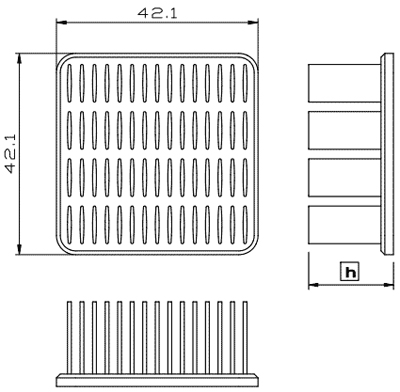

Typ | ABMESSUNG (LxB) (mm) | Höhe (mm) | Gewicht (g) |
---|---|---|---|
MW 42.5-12 | 42.5 x 42.5 | 11.6 | 20.0 |
MW 42.5-15 | 42.5 x 42.5 | 14.6 | 22.6 |
MW 42.5-18 | 42.5 x 42.5 | 17.6 | 25.2 |
MW 42.5-21 | 42.5 x 42.5 | 20.6 | 27.8 |
MW 42.5-23 | 42.5 x 42.5 | 22.6 | 29.5 |
MW 42.5-28 | 42.5 x 42.5 | 27.6 | 33.9 |
MW 42.5-33 | 42.5 x 42.5 | 32.6 | 38.2 |
CMBA014242 Serie

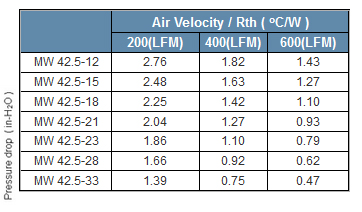

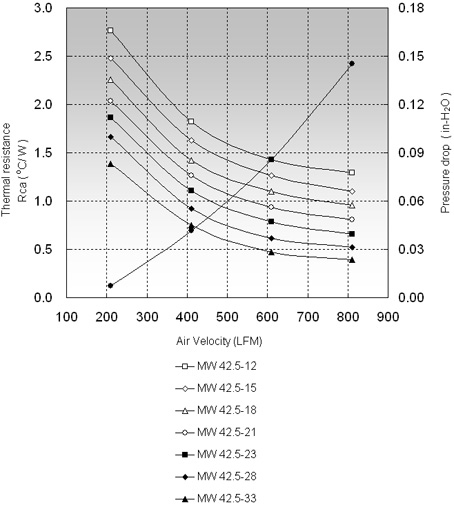

Thermischer Widerstand
LFM (ft/min): Flow velocity of air
CFM (ft³/min): Air flow rate
Flow rate: flow rate x surface of the heat sink (W x H)
200 LFM = 1.02 m/s
100 CFM = 169.9 m³/h
